PIVOTED SHOE

TILTING PAD

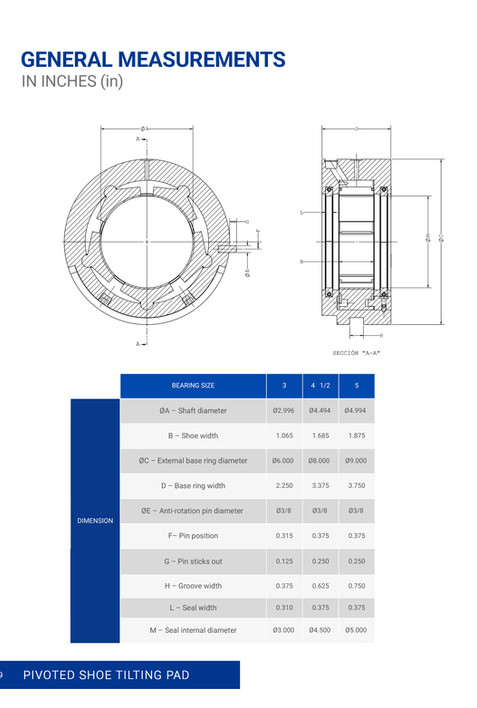

The pivoted shoe tilting pad journal bearing consists of a base ring with five journal shoes located both circumferentially and radially by stops pins and axially by retainer pins.

These journal bearings are center pivoted
and are suitable for either rotation direction.

Key seat tilting pad base ring configuration 1_edited.png

DIRECTION

Independent seal rings on both sides can be replaced without disassembling lower shoes.


ORDER

If the bearing you need is not listed below, feel free to contact us for a quote

BEARING TYPE? Please fill in the following information.
Key Seat Conf. No. 1
Key Seat Conf. No. 2
Key Seat Conf. No. 3
Spherical Seat
Pivoted Shoe
Standard Pivoted Shoe

Detector RTD:

Rotatory Equipment
