KEY SEAT TILTING PAD 2

BASE RING CONFIGURATION NO.2

Key seat tilting pad, journal bearings with No. 2 base ring configuration are very similar to key seat tilting pad No. 1 configuration.

Both are almost identical, except for the base ring that doesn’t have an external groove.

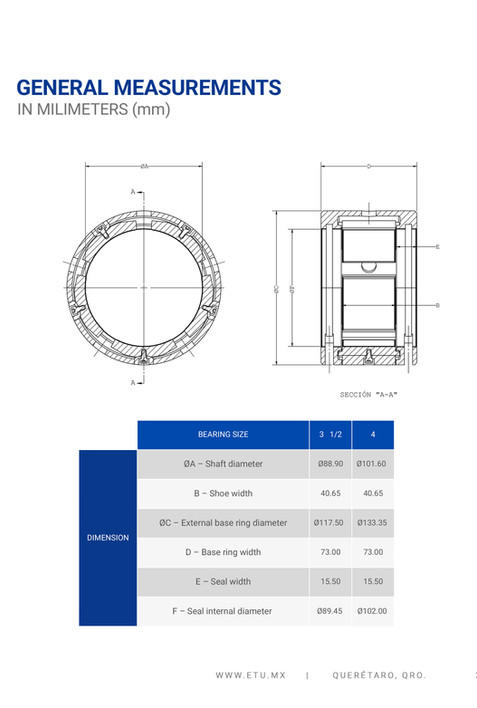

Key seat tilting pad base ring configuration 1_edited.png

DIRECTION

The shoes have a babbitt coating on the working face in order to prevent direct friction (metal to metal) with the shaft. Thanks to the key seat, the shoe is free to tilt in any direction.


ORDER

If the bearing you need is not listed below, feel free to contact us for a quote

BEARING TYPE? Please fill in the following information.
Key Seat Conf. No. 1
Key Seat Conf. No. 2
Key Seat Conf. No. 3
Spherical Seat
Pivoted Shoe
Standard Pivoted Shoe

Detector RTD:

Rotatory Equipment
